ROG Ginger V1.0a - Build Instructions

ROG Ginger V1.0a - Build Instructions

1.0.0 - 8 September, 2015 839.03 KB
ginger_diy2

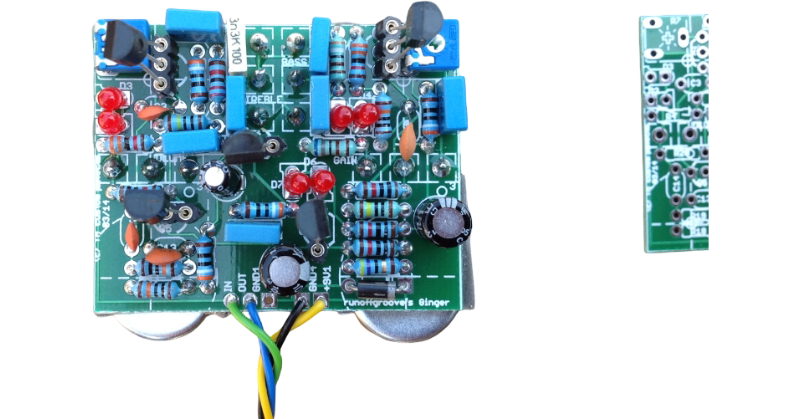

This is my PCB for runoffgroove’s Ginger bass amp emulation.

Here is the link to ROGs project and their soundfiles.

The Ginger is modelled after an Ampgeg SB-12 Portaflex bass amp.

Board mounted pots can be used to make the build easier.

PCBs based on runoffgroove circuits purchased from TH custom effects are intended for DIY / non-commercial use only. Any commercial use whatsoever is forbidden


1 Comment

  1. otu

    Real good kit. Only problem was that the 4 pots aren’t symmetrical (the lay out). The tone pot holes on the pedal box must be wider than the vol pots.
