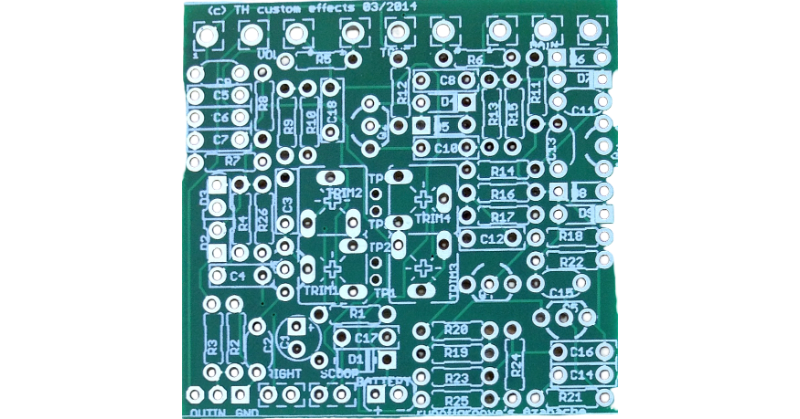

ROG Azabache PCB V1.1
$ 10.20
Azabache V1.1. - Build Instructions
1.0.0 - 8 September, 2015 769.03 KB
ROG Azabache - 1590B Template
1.0.0 - 18 July, 2015 15.58 KBRunoffgroove’s Azabache (Great Fender™ amp emulation).
In stock
PCB only.
PCBs based on runoffgroove circuits purchased from TH custom effects are intended for DIY / non-commercial use only. Any commercial use whatsoever is forbidden.
| Weight | 10 g |
|---|---|
| Dimensions | 50 × 54 × 2 mm |
2 reviews for ROG Azabache PCB V1.1
You must be logged in to post a review.
Related products
$ 12.60
Overdrive etc.
$ 10.20
Overdrive etc.
$ 9.00
Overdrive etc.
$ 8.40
$ 11.40
Overdrive etc.
$ 9.60
Overdrive etc.
$ 9.60
Overdrive etc.
$ 8.40
Iago –

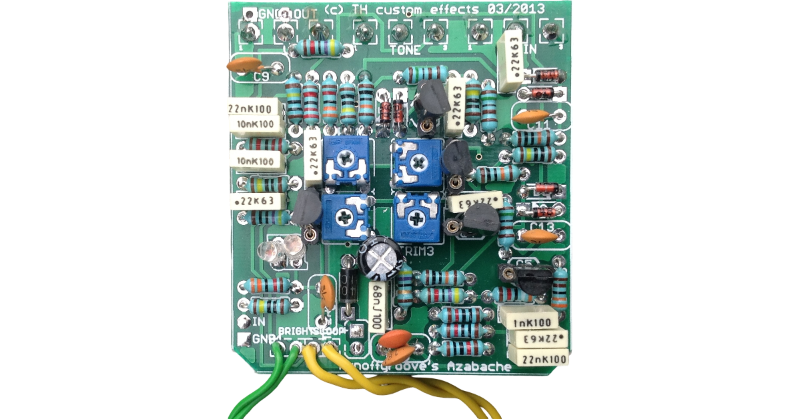

This is a great PCB layout that is tight but won’t “bunch up” the components. You can use this in a 1590B enclosure without any problems, too. The effect itself can be quite gainy at noon-ish gain settings, so I’d recommend playing around with other JFET’s like MPF102’s and/or 2N5457’s in order to expand the lower gain adjustment possibilities. If you find it too trebly and the tone control just isn’t helping all that much, use a very small value resistor for R5 (like 1k, 470 ohms or something even smaller) or just substitute it for a link altogether. With these little adjustments done it’s the best thing I’ve ever come across regarding Fender amp type tones from an analog circuit. A Must-build.
Milan (verified owner) –
Neil Young in a box! Sweet sounding Fender style overdrive and great PCB with easy biasing thanks to the testing points.
