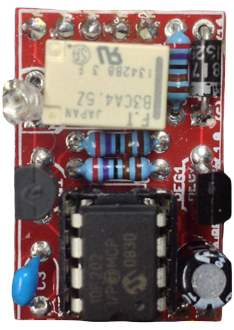

Uber- Switch V1.1 – Relay True Bypass with mute – KIT – Bundle

Name: Uber- Switch V1.1 - Relay True Bypass with mute - KIT - Bundle
SKU: 7848
Price: 2.80 EUR
Availability: InStock

€ 2.80 – € 8.20

1 file(s) 587.79 KB

Microcontrolled Relay-true-Bypass with MUTE feature.

Signal is muted while switching – reducing noise.

This Kit contains everything you need but the momentary switch:

PCB
programmed microcontroller
Fujitsu FTR-B4C relay
CPC1017NTR Optocoupler (SO-4)
78L05 voltage regulator
BC549 or equivalent transistor
1N5817 diode
100nF MLCC cap
100uF p-electro cap
3 resistors
3mm clear LED (red,green,blue,orange – specify with your order or you get a random color)

Soft touch momentary switch can be ordered separately.

When kits are on backorder you still will receive it in 3-5 days time.

Weight	40 g
Dimensions	40 × 50 × 5 mm

Uber- Switch V1.1 - Relay True Bypass with mute - KIT quantity	Uber- Switch V1.1 - Relay True Bypass with mute - KIT	€ 8.20 Available on backorder
Quality Momentary Soft Switch quantity	Quality Momentary Soft Switch	€ 2.80 In stock
High Quality Momentary Soft Switch quantity	High Quality Momentary Soft Switch	€ 4.79 Only 1 left in stock
