NOPE Relay True Bypass – Kit
$ 7.80
NOPE V1.1 - Build Instructions

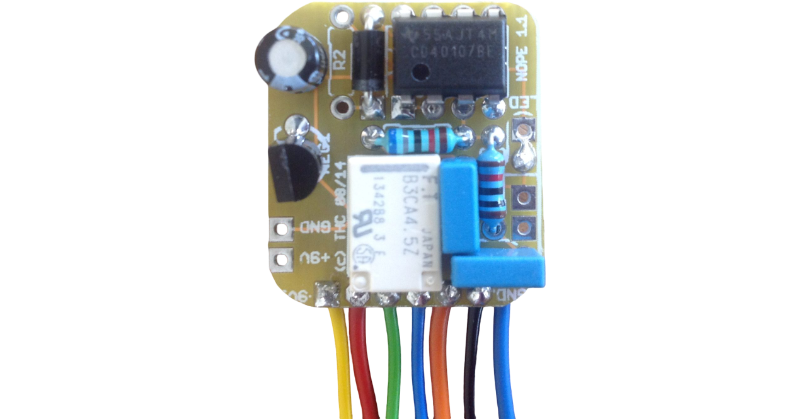

- 10 September, 2015 396.14 KBThis is a no microcontroller version of a relay true bypass.
Available on backorder
This is a no microcontroller version of a relay true bypass.
This Kit contains everything you need but the momentary switch:
- PCB
- IC
- Fujitsu FTR-B4C relay
- 78L05 voltage regulator
- 1N5817 diode
- 330nF cap
- 47/100 uF p-electro cap
- 2 resistors
- 3mm clear LED (red,green,blue,orange – specify with your order or you get a random color)
Soft touch momentary switch can be ordered separately.
When kits are on backorder you still will receive it in 3-5 days time.
| Weight | 30 g |
|---|---|
| Dimensions | 34 × 30 × 20 mm |
