Dr. Phil Compressor V1.1 – PCB

dr_phil_11_pcb
5 out of 5 based on 1 customer rating
(1 customer review)

$ 9.60

Dr. Phil V1.1 - Build Instructions

Dr. Phil V1.1 - Build Instructions

- 9 November, 2015 780.47 KB
Dr. Phil V1.1 1590B Template

Dr. Phil V1.1 1590B Template

1.0.0 - 18 July, 2015 16.09 KB

Clone of a famous compressor with dirt section and unique controls.

In stock

Category: Tag:

Product Description

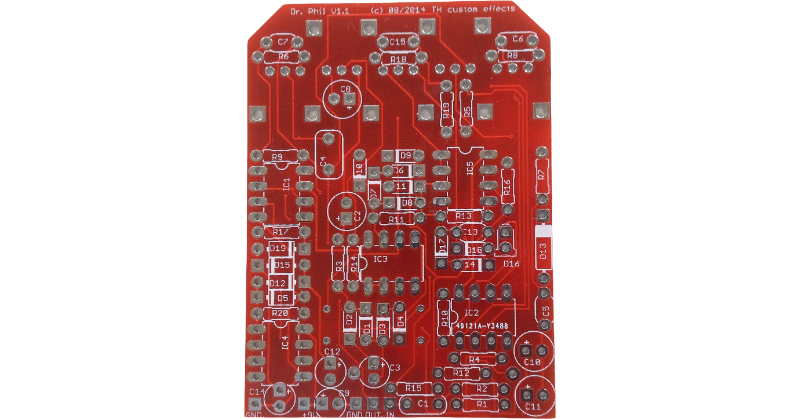

PCB only!



Additional Information

Weight 8 g
Dimensions 50 x 68 x 2 mm

1 review for Dr. Phil Compressor V1.1 – PCB

  1. 5 out of 5

    :

    Bought the Dr. Phill v1.1 PCB earlier this year and just completed it. I really do like it. Works great with a couple of caveats . . .

    1) With some power supplies, there is a high-pitched whine. I guessed it might be from the charge pump IC (ICL7660), so added a ferrite bead between pin 8 of IC4 (the ICL7660) and R20 (150R). I just left the pin-8 side lead of R20 long and slipped the ferrite bead on there.

    2) I was a bit disappointed that I could not turn the “Grit” all the way off, so I added some wire and a switch to by-pass D’s 6 – 11 and D’s 13 – 18 (not D15)

    Even though I had to perform a couple of mods to suit my tastes, I still give this PCB 5 stars because it is a well built PCB and over-all great design. Perhaps someone may find this review and mods useful. Thanks for reading.
