(Mini) Muffin V1.x – DIY

muffin_10_diy
Muffin V1.0 - Build Instructions

Muffin V1.0 - Build Instructions

1.0.0 - 8 September, 2015 647.42 KB
muffin_10_diy

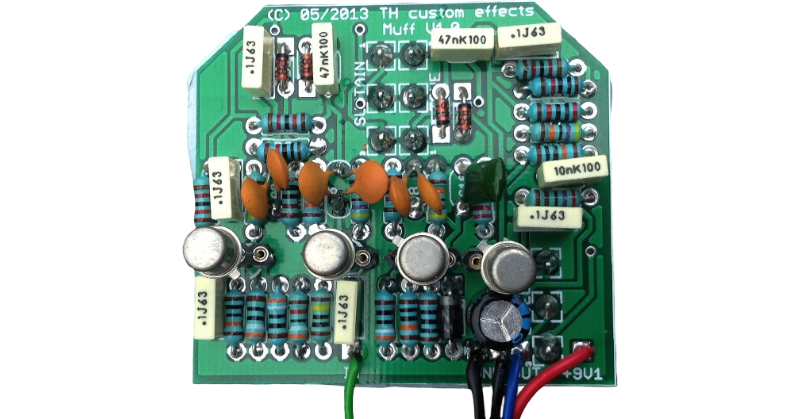

Muffin and Mini-Muffin are fine projects to build all the known variations of the Big Muff(TM).

While the Muffin is ideal for a 1590B enclosure…









…the Mini-Muffin fits a 1590A enclosure.mini_muffin_10_diy

Please note that despite its size all resistors are 1/4 W size!

You are able to build a lot of different versions as shown here: http://juansolo.co.uk/stompage/Muffs.htm

New Mini Muffun layout V.1.1

old build instructions:

Mini Muffin V1.0 - Build Instructions

Mini Muffin V1.0 - Build Instructions

1.0.0 - 8 September, 2015 597.36 KB
