3PDT – TH custom effects

3PDT wiring board

Posted on 31 March, 201422 July, 2015 by TH custom effects

31
Mar

[wpdm_file id=52] Out of my daily building practice I have released my 3PDT PCB to the DIY community.With building pedals there is the need to used 3PDT switches for True-Bypass wiring. Just new: the 1590A version. Considering the tight and different layout of a 1590A build a special version of the PCB is needed.

Continue reading →

DIY

The Ultimate Switch V2.0 – DIY

Posted on 11 September, 20137 June, 2015 by TH custom effects

11
Sep

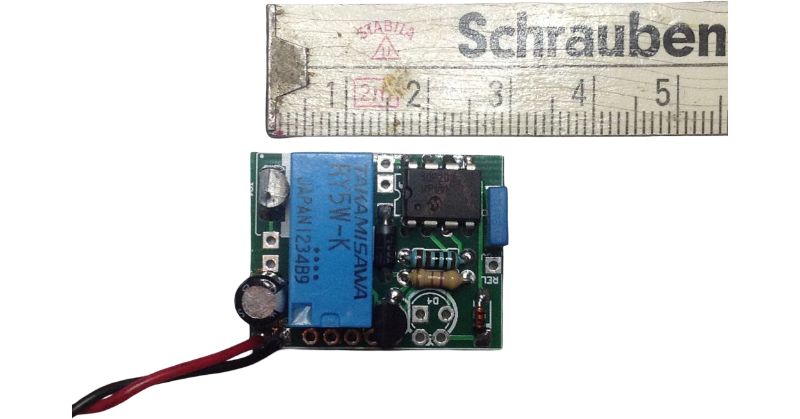

[wpdm_file id=34] The ultimate switch developed out of the need to somehow bring back old times when you had switches (more than 1) that released any already pressed switch when a new switch is pressed. You would call that a 1 out of X logic or radiobuttons if you were in the microprocessor area. During […]

Continue reading →

Project

3PDT Buffer Board

Posted on 11 January, 201322 August, 2013 by TH custom effects

Ever built a Pedal and it was missing the proper buffer or driver capabilities? This 3PDT board features: easy to mount all wire connectors at the front buffer into the effect driver at the output LED indicator Board monted DC-jack allows for gain adjustments by tweaking the resistor values of each stage Your favourite Fuzz […]

Continue reading →
