OD 66 – DIY

od66_diy od66_diy

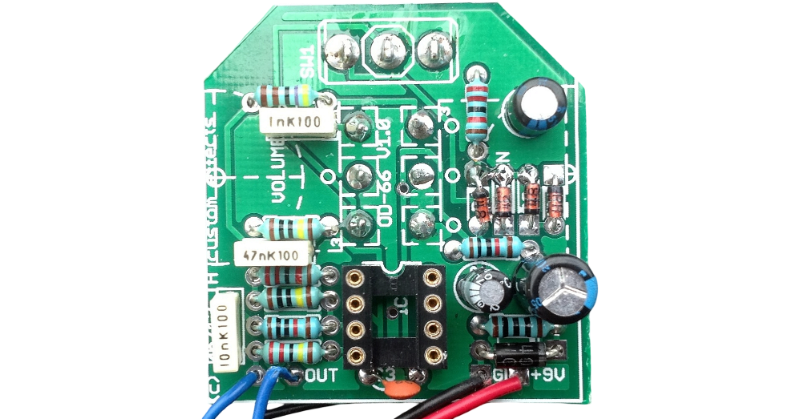

The OD 66 Overdrive is based on the old DOD 250(TM) Overdrive.

This version features an additional switch for the selection of different clipping diodes.

This build is easy for beginners and fits a 1590B enclosure easily.



OD 66 mini V1.0 Build Instructions

OD 66 mini V1.0 Build Instructions

1.0.0 - 8 September, 2015 557.74 KB

The V1.1 version features the 9mm helper pot, better aligned Pads and an on-board switch.

OD-66 Mini V1.1 - Build Instructions

OD-66 Mini V1.1 - Build Instructions

1.0.0 - 8 September, 2015 401.14 KB

The OD-66 Mini version fits a 1590A enclosure and still has the clipping switch!

od66mini-diy
