ROG Supreaux-Deux V1.1/1.3 – DIY

supreaux_deux_diy
ROG Supre-Deux V1.3 - Build Instructions

ROG Supre-Deux V1.3 - Build Instructions

1.0.0 - 15 September, 2015 595.07 KB

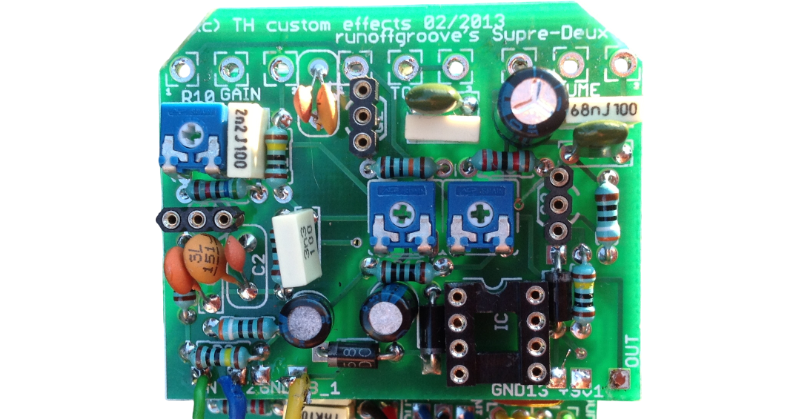

This is my PCB for runoffgroove’s Supreaux-Deux overdrive.

supreaux_deux_diy

Here is the link to ROGs project and their soundfiles.

The Supreaux Deux is moddeled after a single ended SUPRO 16T.

Board mounted pots can be used to make the build easier.

V1.3 has a smaller layout and testpoints added to make biasing the JFETs easier.

Older build docs:

PCBs based on runoffgroove circuits purchased from TH custom effects are intended for DIY / non-commercial use only. Any commercial use whatsoever is forbidden
