Pedal-Power-Supply

Pedal Power Supply

Annoyed about your noisy and unreliable pedal power supply?

This Pedal Power Supply features:

  • 2 x 9V/12V – 2*600mA powerPSU_size
  • very quiet
  • efficient
  • reliable
  • small in size





As this is a mains power supply unit, Please take care in building this. It can harm your life !

This is a unit used on my workbench build to provide

  • +18V
  • +12V
  • +9V

to the testing area.

It is based on the single sided artwork.

When using perfboard (as can be seen in the picture) NEVER use a single perfboard to mount the transformator. ALWAYS use two separate strips. one for the lethal section, the other one for the rest!

Prototype

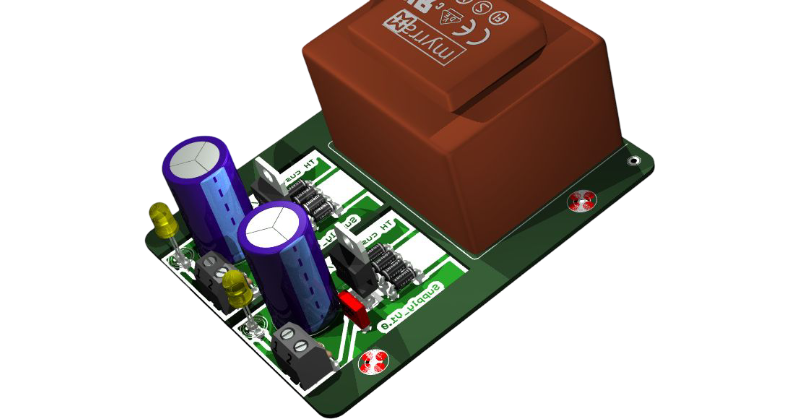

3D rendered board:

Power_Module_V1_complete_panel_3Donly
