3PDT wiring board

Posted on 31 March, 201422 July, 2015 by TH custom effects
31
Mar
[wpdm_file id=52]

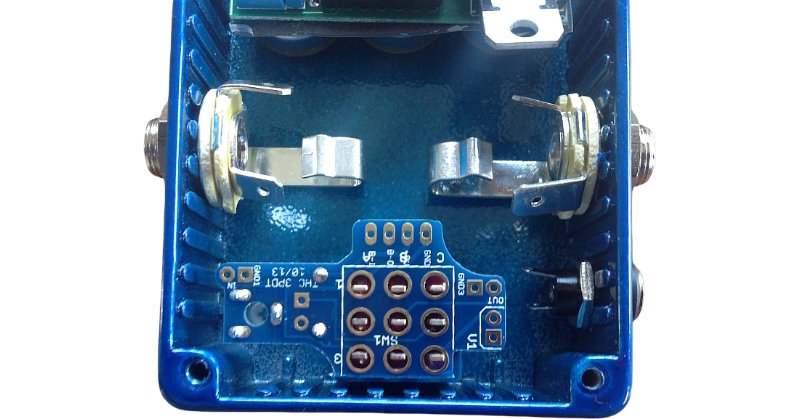

Out of my daily building practice I have released my 3PDT PCB to the DIY community.With building pedals there is the need to used 3PDT switches for True-Bypass wiring.

3pdt-pic2

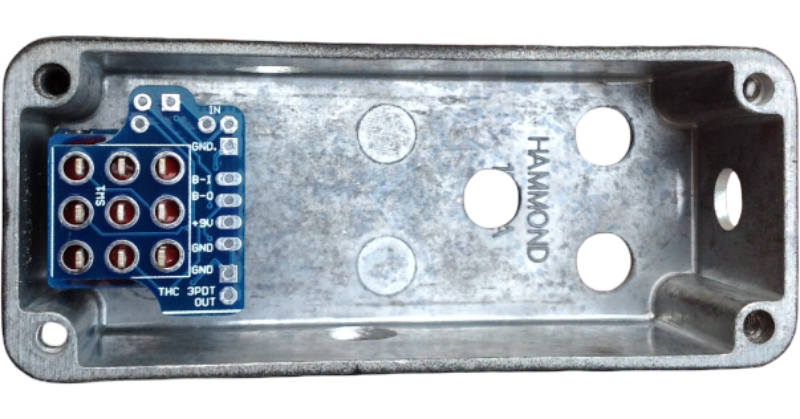

Just new: the 1590A version. Considering the tight and different layout of a 1590A build a special version of the PCB is needed.

3PDT_1590A_encl_b
