Ultimate switch

A switch that can do a True Bypass on your effect
can be controlled via a remote Pedal (momentary switch)
it can make that other switches of this type release automatically when it is pressed (implementing a one out of x logic)


There are currently several variations in the make:

  • a board that mounts a momentary switch and replaces an existing 3PDT
  • a board strip that has a single power/switch module and two (already connected) strip modules
  • single strip modules to extend the strip

Cant wait until the prototype boards are here.They are here and working as they should!

A video showing the breadboarded version is here:

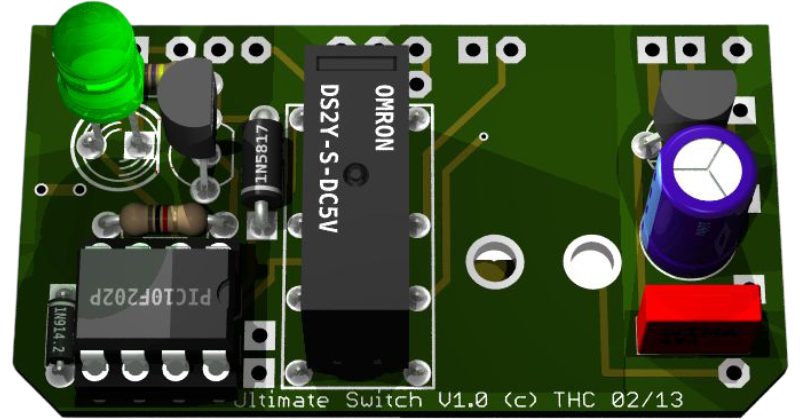

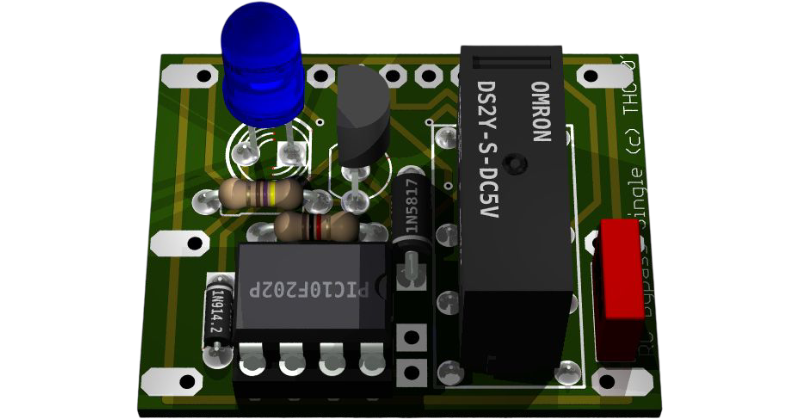

3D rendered images of the boards:

Ultimate_Switch_Strip_Module Ultimate_Switch_PWR_Strip_3D Ultimate_Switch_3D
