Pedal Power – DIY

Pedal Power Supply

PSU_size

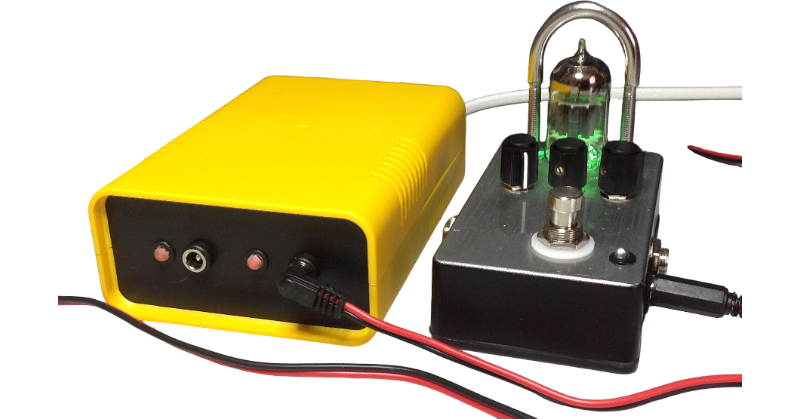

Build this to get a reliable, efficient and quiet power supply for your pedal board.

THIS PROJECT DEALS WITH MAINS POWER AND CAN HARM YOUR LIFE! SO PLEASE TAKE EXTREME CARE WHEN BUILDING THIS !

  • 2 x 9V/12V – 2*600mA power
  • very quiet
  • efficient
  • reliable
  • small in size

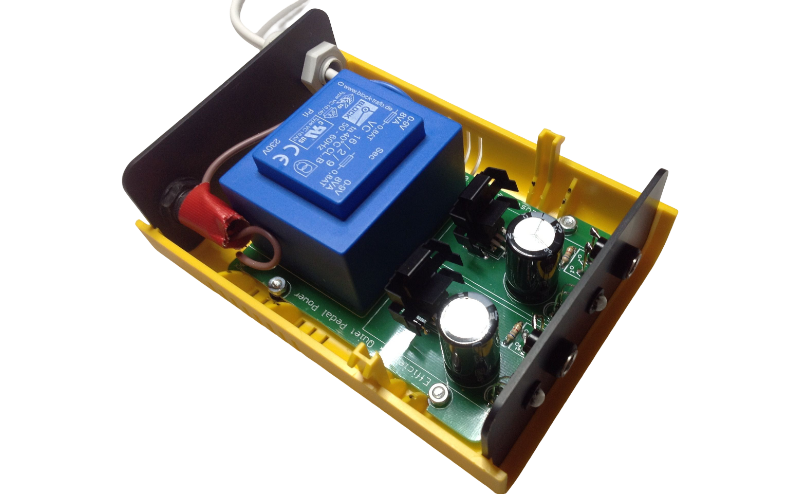

The build instructions also contain 1-layer artwork allowing you to etch boards yourself !

See the related project HERE!


7 Comments

  1. Fabrizio

    Hi, nice project!
    Stupid question: where did you get that enclosure? It looks great!

  2. TH custom effects (Post author)

    Its called a EURO-Box. Because it is made to hold PCBs in the half/Euro-size PCB format.

  3. PPMRD

    Hi,
    the transformer in the image you’ve posted has 9v as secondary output.
    Does it really mean 9VAC or it already tell you that you will get 9VDC after the diodes? Because according to the formula AC = DC / 0.636 if it is 9VAC you will be getting just 5.7VDC after rectifier and it’s impossible.
    I know it’s a silly question but I’m pretty new to transformers 🙂

  4. TH custom effects (Post author)

    Your formula is wrong 🙂

  5. PPMRD

    XD I did not expect this answer, I saw it here

    So if your transformer has 9VAC as secondary output how much do you get after the rectifier?

  6. TH custom effects (Post author)

    It’s appx 12V.
    9V AC is what these transformers put out at maximum load. Rectification AND buffering via a well dimensionated capacitor! is – that figure can be off a little – 1.26 times the AC number.

  7. PPMRD

    Really thanks for answering!
