(Mini) Muffin V1.x – DIY

Posted on 29 May, 201311 August, 2015 by TH custom effects

29
May

[wpdm_file id=21] Muffin and Mini-Muffin are fine projects to build all the known variations of the Big Muff(TM). While the Muffin is ideal for a 1590B enclosure… …the Mini-Muffin fits a 1590A enclosure. Please note that despite its size all resistors are 1/4 W size! You are able to build a […]

Continue reading →

Rodent V1.1 / Rodent mini V1.0 – DIY

Posted on 29 May, 20132 October, 2013 by TH custom effects

29
May

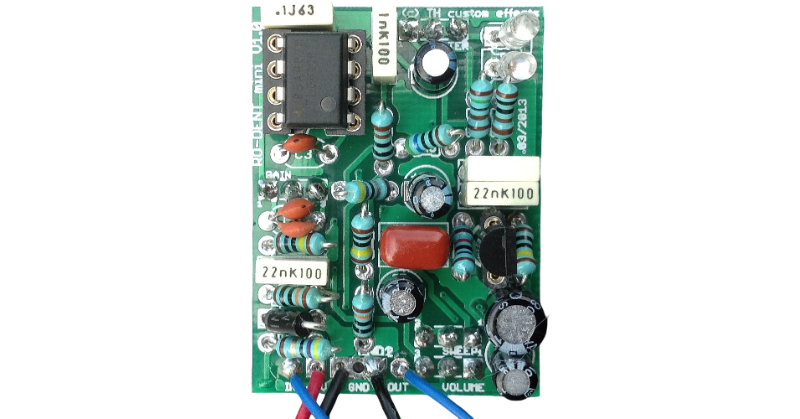

[wpdm_file id=36] The Ro-dent board is my version of the ProCo RAT(TM). It features the available mods as well as an additional clipping stage in the OpAmp. The Miniature version fits in a 1590A enclosure. [wpdm_file id=23]

Continue reading →

DIY

ROG Supreaux-Deux V1.1/1.3 – DIY

Posted on 29 May, 201322 December, 2014 by TH custom effects

29
May

[wpdm_file id=74] This is my PCB for runoffgroove’s Supreaux-Deux overdrive. Here is the link to ROGs project and their soundfiles. The Supreaux Deux is moddeled after a single ended SUPRO 16T. Board mounted pots can be used to make the build easier. V1.3 has a smaller layout and testpoints added to make biasing the JFETs […]

Continue reading →

DIY

ROG Condor – Cabinet Simulation – DIY V1.1

Posted on 28 May, 201322 August, 2013 by TH custom effects

28
May

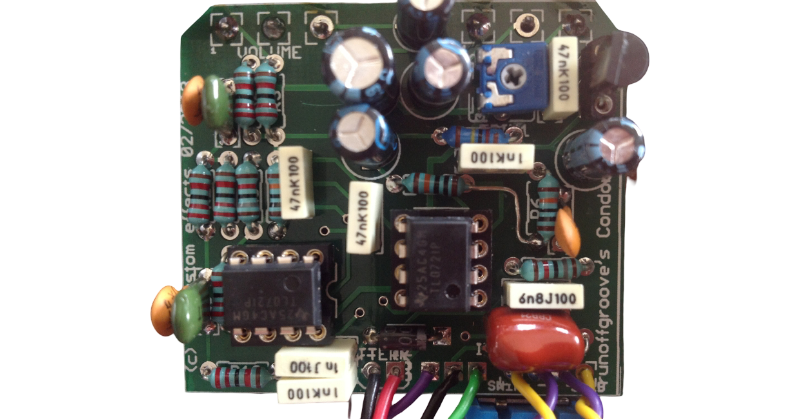

[wpdm_file id=18] This is my PCB for runoffgroove’s Condor cabinet simulation. Here is the link to ROGs project and their soundfiles. In my opinion ROGs Condor is one of the best available cabinet simulators. It emulates a speaker cabinet and allows direct recording or listening via a headphone amp. The PCB has the M-modification as […]

Continue reading →

DIY

ROG Umble V1.0/1.2/1.3/1.4 – DIY

Posted on 8 May, 20134 January, 2015 by TH custom effects

08
May

[wpdm_file id=80] [wpdm_file id=58] [wpdm_file id=46] [wpdm_file id=16] This is my PCB for runoffgroove’s Umble overdrive. The circuit has been altered to have less gain. The original had way too much for my liking. Listen to the soundfiles! Here is the link to ROGs project and their soundfiles. The Umble is modelled after one of […]

Continue reading →

DIY

ROG Thor modified V1.2 – DIY

Posted on 8 May, 201328 March, 2014 by TH custom effects

08
May

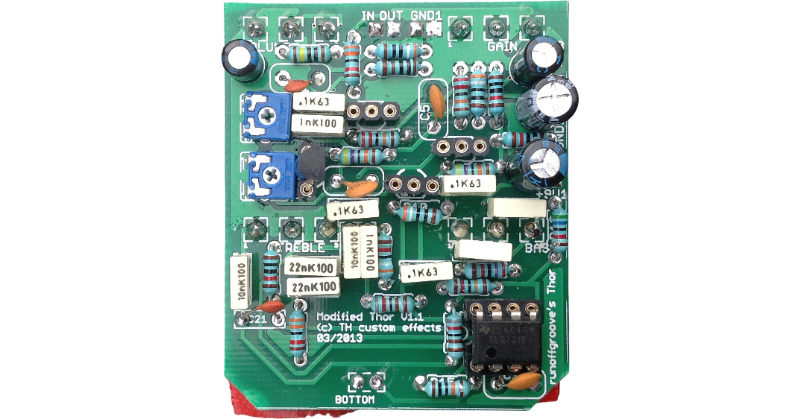

[wpdm_file id=27] This is my PCB for runoffgroove’s Thor overdrive. Here is the link to ROGs project and their soundfiles. The Thor is modeled after a Marshall 100W super lead amp. This circuit enhances the original build by adding a Bandaxall tonestack and a lead-channel-mod. Board mounted pots can be used to make the build […]

Continue reading →

DIY

ROG Professor Tweed – DIY

Posted on 7 May, 201322 August, 2013 by TH custom effects

07
May

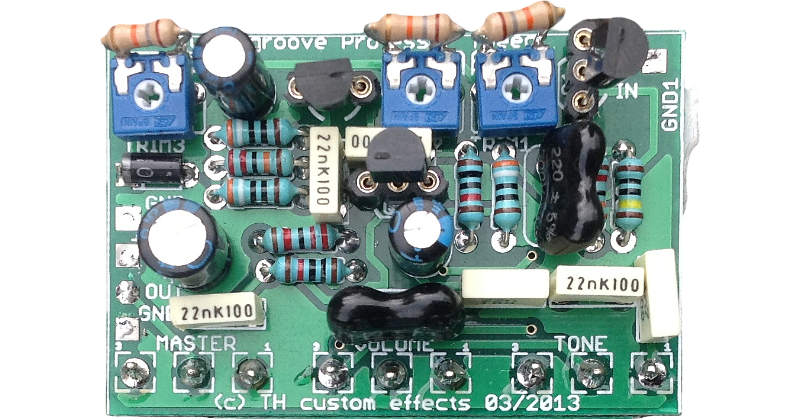

[wpdm_file id=14] This is my PCB for runoffgroove’s Professor Tweed overdrive. Here is the link to ROGs project and their soundfiles. The Professor Tweed is a Fender-princeton-like overdrive. Board mounted pots can be used to make the build easier.

Continue reading →

DIY

Pedal Controller V2.1 – DIY

Posted on 18 April, 201325 November, 2014 by TH custom effects

18
Apr

[wpdm_file id=12] Build your own Pedalboard Controller using our modular system ! This is Revision 2.1 with several enhancements processor controlled easy-to-read display 30 banks of 4 patches each 8 Loops with optional Bi-Amping Input board with linear driver and Tuner-Out Up to 16 loops using the extension board Input board has an optional power […]

Continue reading →

DIY, slideshow

Re-verb V4.0 – DIY

Posted on 15 April, 201326 June, 2014 by TH custom effects

15
Apr

[wpdm_file id=57] If you wish to add reverb to your pedalboard or use it in your amp because it does not have one – you are at the right place. What makes this reverb special is its unique tone control. You can shape the color of the reverb signal and boost the lower or higher […]

Continue reading →

DIY

Joe Davissons JFET-Vulcan 1.0 / Devil V2.0 -DIY

Posted on 11 April, 20135 July, 2015 by TH custom effects

11
Apr

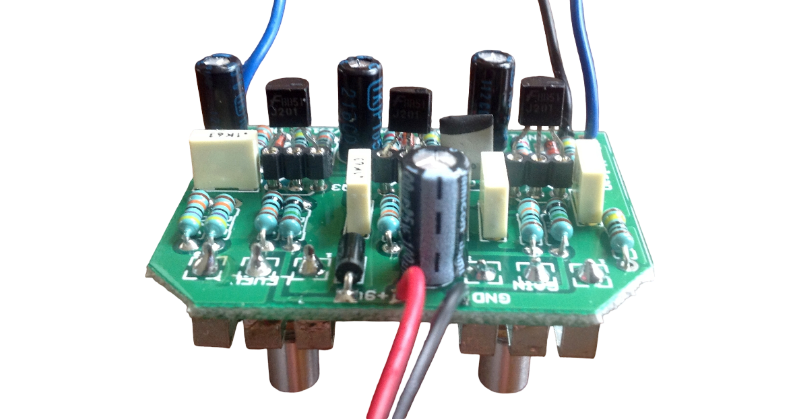

This is all about Joe Davissons JFET Vulcan high gain overdrive. Although the schematics that can be found on the net are a few years old this is still one of the simplest to build and good sounding high gain circuits. The original Vulcan PCB has been discontinued. The Devil [wpdm_file id=93] The […]

Continue reading →
